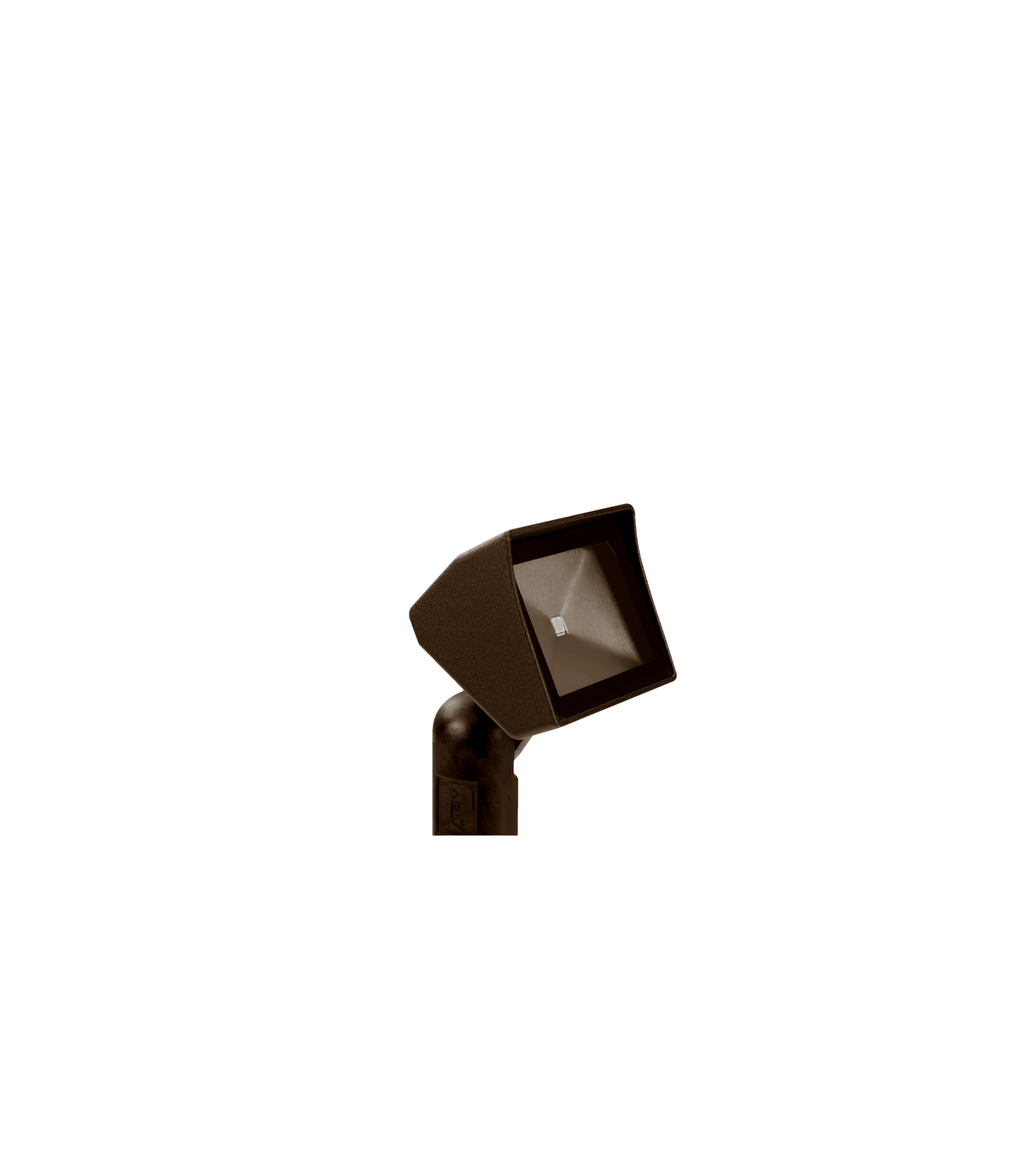

The 5105 is a powerful and compact low voltage flood light fixture constructed of die-cast, copper-free aluminum and comes factory installed with advanced chip-on-board (COB) LED. With the energy savings of LED technology, the integrated, single LED chip/emitter is available in 3W.

The fixture provides a powerful output range from 200-400 delivered lumens and also available in a Warm Color temp option. At the base of the housing is a high temperature silicone gasket to ensure a superior weather-tight seal under harsh conditions. A frosted, shock and heat-resistant, soda-lime glass lens safeguards the lamp and optics.

A super durable polyester powder coat finish is available in Black. The intelligently engineered fully adjustable knuckle is made from injection-molded, fiber-reinforced composite which effectively isolates the fixture from the harmful corrosive soil. The 5105 is shipped with a 3W LED, unless otherwise specified. ABS ground stake mounting hardware is included.

FIXTURE FEATURES:

• HOUSING: Die-cast, copper-free aluminum.
• FINISH: Polyester powder-coat finish available in Dark Bronze
• LENS: Frosted, tempered, shock and heat resistant, soda-lime glass lens.
• LAMP TYPE: LED Lamp Only - 4W. Color temperature available in W-Warm (3000K)
• ELECTRICAL: Input voltage range 9 - 15V AC regulated to achieve uniform illumination throughout the cable run of fixtures. Integral surge & reverse polarity protection.
• MOUNTING: Injection-molded composite adjustable knuckle with ½” NPS stem. Fixture may be mounted into threaded hubs in junction boxes, ground stakes (GR), tree mount boxes (TR), or mounting canopies (WR).
• FASTENERS: All fasteners are stainless steel.
• WIRING: Prewired with a three-foot pigtail of 18-2 direct-burial cable and underground connectors for a secure connection to supply cable.

SPECIFICATIONS:

• Lamp Type: LED
• Max Wattage: 4W
• LED Wattage Range: 4W
• Material: Aluminum
