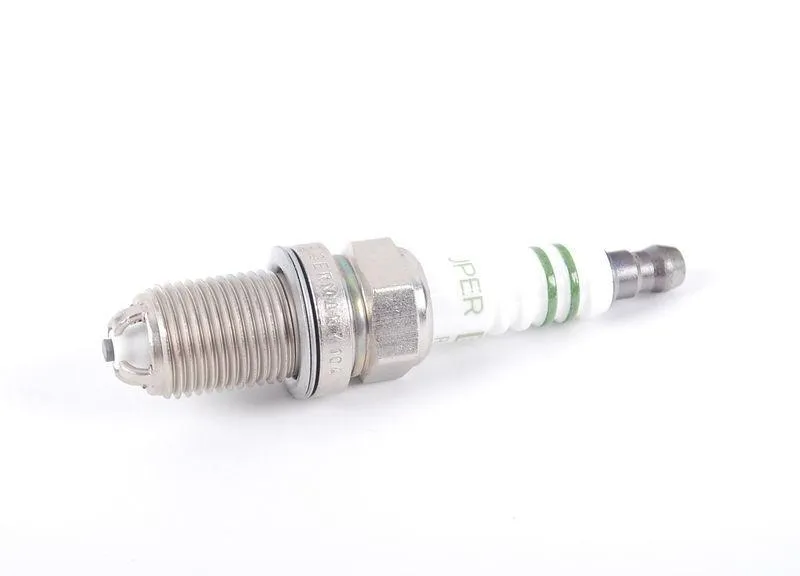

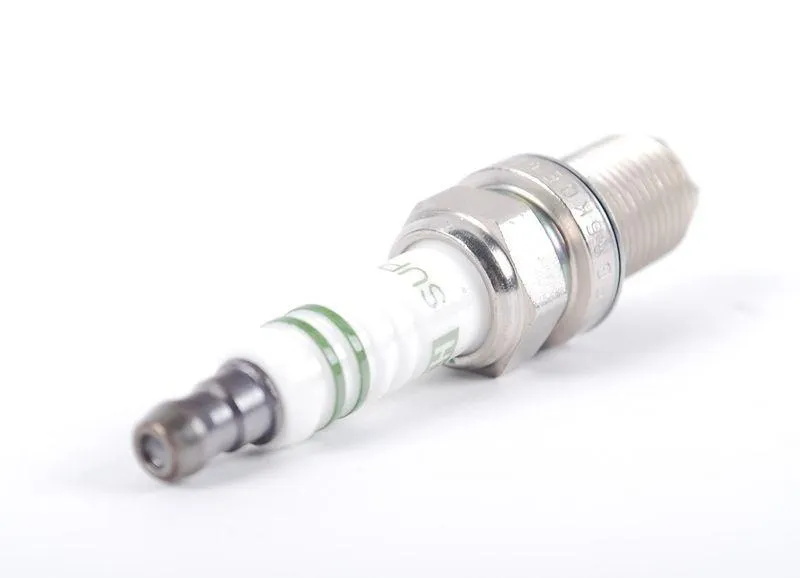

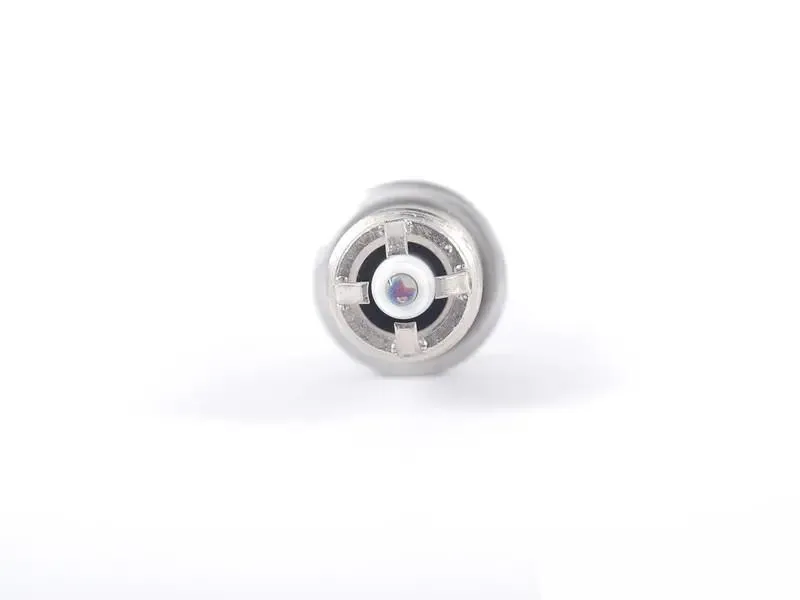

Specifications
Electrode Gap: 1.0 mm
Tightening Torque: 28 Nm
Tightening Degree: 90
Outer Thread: 14 mm
Thread Pitch: 1.25 mm
Thread Length: 19 mm
Spanner Size: 16
Spark Position: 4 mm
Number of Poles: 4 Terminal

For the following vehicles
Vehicle Model year kW HP cc Design
BOXSTER (986) 2.7
Model year from: 09.1999
08.1999 - 07.2002 162 220 2687 Convertible
BOXSTER (986) 2.7
Model year to: 08.2004
07.2002 - 12.2004 168 228 2687 Convertible
BOXSTER (986) S 3.2 08.1999 - 07.2002 185 252 3179 Convertible
BOXSTER (986) S 3.2
Model year from - to: 09.2002 - 08.2004
07.2002 - 12.2004 191 260 3179 Convertible
BOXSTER (986) S 3.2
Model year to: 08.2004
01.2004 - 12.2004 196 266 3179 Convertible
BOXSTER (987) 2.7
Model year to: 08.2005
11.2004 - 12.2006 176 240 2687 Convertible
BOXSTER (987) S 3.2
Model year to: 08.2005
11.2004 - 12.2006 206 280 3179 Convertible
CAYENNE (9PA) S 4.5
Model year to: 01.2007
09.2002 - 09.2007 250 340 4511 Closed Off-Road Vehicle
911 (996) 3.4 Carrera
Engine Code: M 96.04
Model year from: 09.1999
09.1997 - 09.2001 221 301 3387 Coupe
911 (996) 3.4 Carrera 4
Model year from: 09.1998
09.1997 - 09.2001 221 301 3387 Coupe
911 (996) 3.6 Carrera
Model year to: 08.2004
10.2001 - 08.2005 235 320 3596 Coupe
911 (996) 3.6 Carrera 4
Electrode gap to be set: 1,6 mm
10.2001 - 08.2005 235 320 3596 Coupe
911 (996) 3.6 Carrera S
Electrode gap to be set: 1,6 mm
Model year to: 07.2004
02.2003 - 08.2005 254 345 3596 Coupe
911 (996) 3.6 Carrera 4S
Model year from - to: 09.2003 - 08.2004
02.2003 - 08.2005 254 345 3596 Coupe
911 Convertible (996) 3.4 Carrera 02.1998 - 09.2001 221 301 3387 Convertible
911 Convertible (996) 3.4 Carrera 4
Engine Code: M 96.04
Model year from: 09.1999
02.1998 - 09.2001 221 301 3387 Convertible
911 Convertible (996) 3.6 Carrera
Model year to: 08.2004
10.2001 - 08.2005 235 320 3596 Convertible
911 Convertible (996) 3.6 Carrera 4
Model year to: 08.2004
10.2001 - 08.2005 235 320 3596 Convertible
911 Convertible (996) 3.6 Carrera S
Electrode gap to be set: 1,6 mm
Model year to: 07.2004
06.2002 - 08.2005 254 345 3596 Convertible
911 Convertible (996) 3.6 Carrera 4S
Model year from - to: 10.2003 - 07.2004
Model year from - to: 10.2003 - 08.2004
06.2002 - 08.2005 254 345 3596 Convertible
911 Targa (996) 3.6
Model year to: 08.2004
12.2001 - 08.2005 235 320 3596 Targa
BOXSTER (986) 2.7
Model year from - to: 09.1999 - 08.2002
06.1999 - 12.2002 155 211 2687 Convertible
